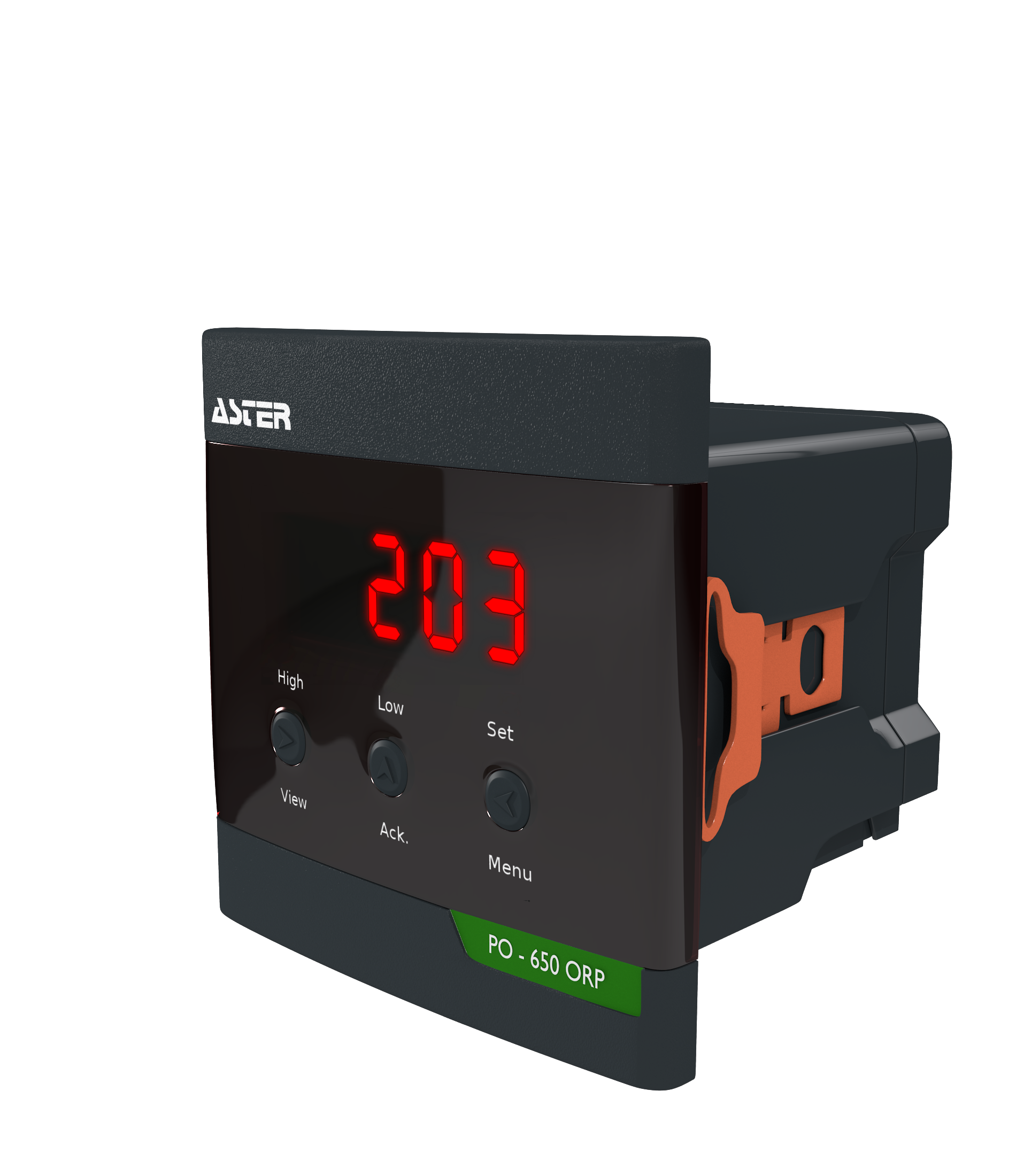

PO 650 On Line ORP Meter
High quality 'Made in India' pumps from CRI in C.I. and SS 304. Available ex-stock at very attractive prices.
LOADING IMAGES
.png)
Traceability Certificate to ERTL / NABL
Front keys for Easy Calibration and Setting
Individual High and Low Set Point with Hysterisis setting to avoid Chattering
In Built Alarm Annunciator
Option of RS 485 for Data Logging and Remote Monitoring
Isolated 4 -20 mAmps Output and Inbuilt current simulator
Technical Specifications.
Range -1,900 to +1,900
Resolution 1
Physical Dimension 105 mm x 105 mm x 130 mm
Cutout Size 90 mm x 90 mm
Enclosure ABS Field / Panel Mounted IP 65
Input Supply 24 VDC / 110 VAC / 230 VAC
Output 2 Relay Output 1 for High ORp and 2nd for Low ORP
Optional -- 4 -20 mAmps Output OR RS 485
Accuracy +/ - 2% FSD
Calibration Using Front keypads
Display 4 Digit 7 Segement LED
RO Plant
Ozonator
ETP Plants
Swimming Pool
Cooloing Tower
